Datacenter SOA Optical Amplifier For 100G LWDM 1294nm-1311nm

Name: Datacenter SOA Optical Amplifier For 100G LWDM 1294nm1311nm
Brand: JHBF
Price: 2 USD

China Datacenter SOA Optical Amplifier For 100G LWDM 1294nm-1311nm wholesale

Model Number : JTN1800-SOA

Place of Origin : Beijing, China

Brand Name : JHBF

Packaging Details : 1PCS in 1 Box

Supply Ability : 100 Piece/Pieces per Month

Price : $2,100.00 - $6,800.00/pieces

Type : Fiber Optic Amplifiers

Use : Data Center Interconnection

No. of Fiber : 1.

Wavelength : LWDM(1294nm~1311nm)

Output Power : 2 ~ 9dBm (Typ. 6dBm)

Gain : 15dB

Input Power : -12 ~ -4dBm

Gain Flatness : 2dB

Connector Type : LC/UPC

Power consumption : 10W(2 way) 30W(6Way)

Input Threshold : -20dBm

Application : Data Center Interconnection

Temperature : -5~50(C degree)

Port : Tianjin

Contact Now

Product Description

Datacenter SOA Optical Amplifier For 100G LWDM 1294nm-1311nm

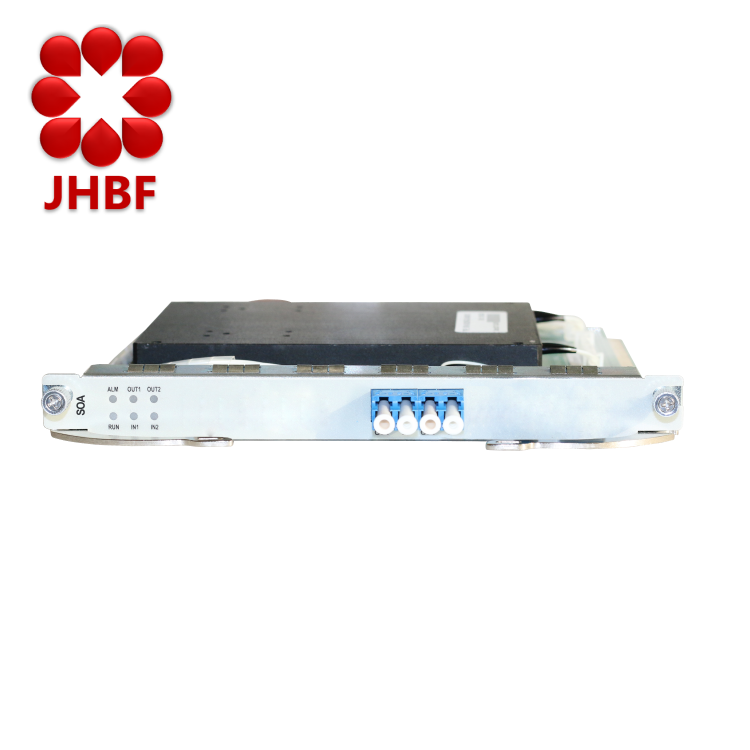

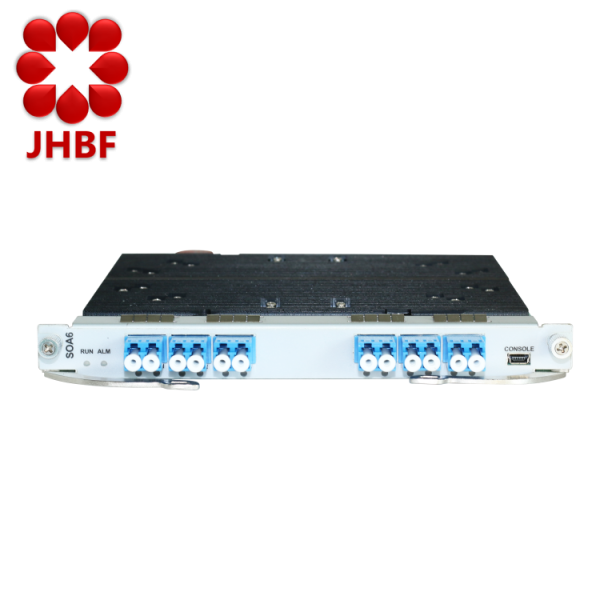

SOA Optical Amplifier Card

JTN1800-SOA series product is a compact, high-density semiconductor amplifier, suitable for network information security projects or data center interconnection projects. It provides low-power 100G signal amplification.
The SOA series reliability and stability have been verified in the information security projects, public security and security domain.The SOA series board should be inserted into JTN1800 chassis.

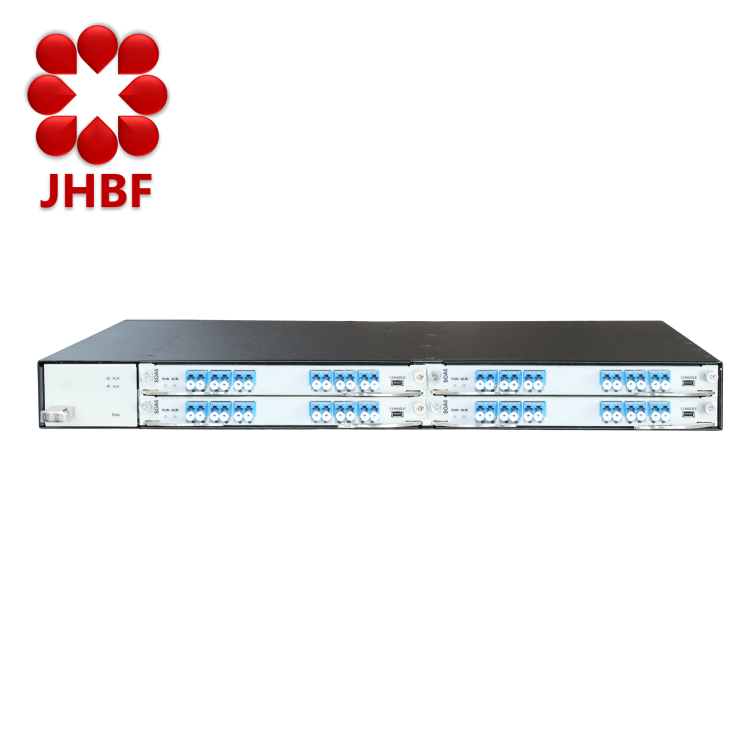

JTN1800 supports multi kinds of service boards, such as Optical Amplifier (OA/SOA), Optical transponder (OTU), Optical Line Protection (OLP), Optical Multiplexer (OMU), Dispersion Compensate Module (DCM), etc. All service boards support hot swap. JTN1800 supports 1+1 dual power backup (dual AC/ dual DC/ AC+ DC)

Features

* Working wavelength 1270nm～1330nm；
* Rapid gain response, suitable for switching and signal operating network；
* Transparent transmission, All-Optical Wavelength Conversion and Optical Switching；
* Simple design,lower power consumption,longer duration；
* High integration, up to 6 one directional amplification in one slot；
* Easy maintenance, multi-configuration modes

Application

* Data Center Interconection for amplification of 100G optical singal.
* Network information Security.

Characteristics

Parameter	SOA
Working wave length	1280 ~ 1330nm
Input Power(in total)	-12 ~ -4dBm
Gain	15dB
Control mode	APC
Output power(in total)	2 ~ 9dBm (Typ. 6dBm)
Input threshold	-20dBm
Gain flatness	2dB
Noise figure	7.5dB
Power consumption	10W (2 way)

Environmental

Parameter	Minimum	Maximum	Unit
Operating Temperature	-5	+50	℃
Storage Temperature	-40	+85	℃
Humidity	5	90	%

Order Information

Part Number	Product Description
JTN1800-SOA2	2 ways Semiconductor Optical Amplifier Card, should be inserted into JTN1800 chassis.
JTN1800-SOA6	6 ways Semiconductor Optical Amplifier Card, should be inserted into JTN1800 chassis.

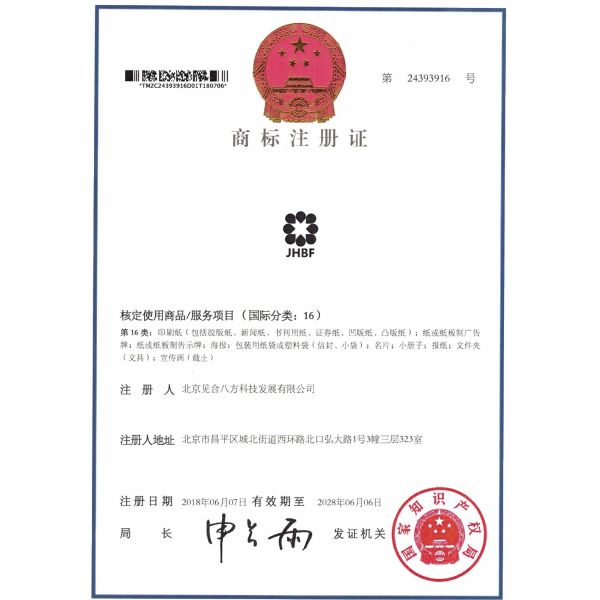

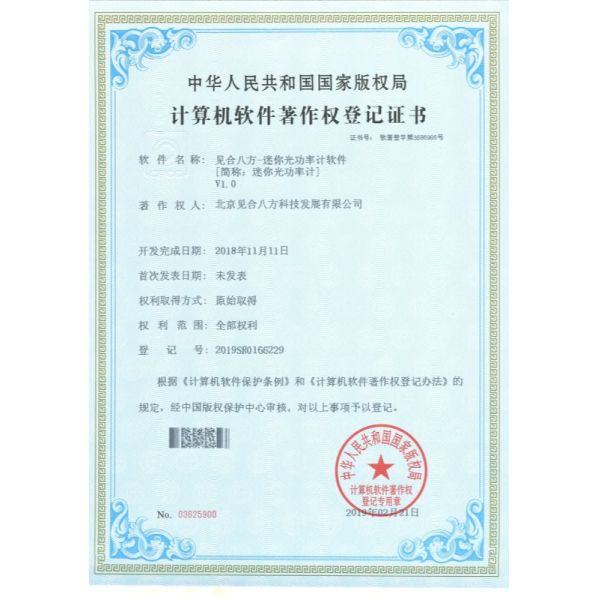

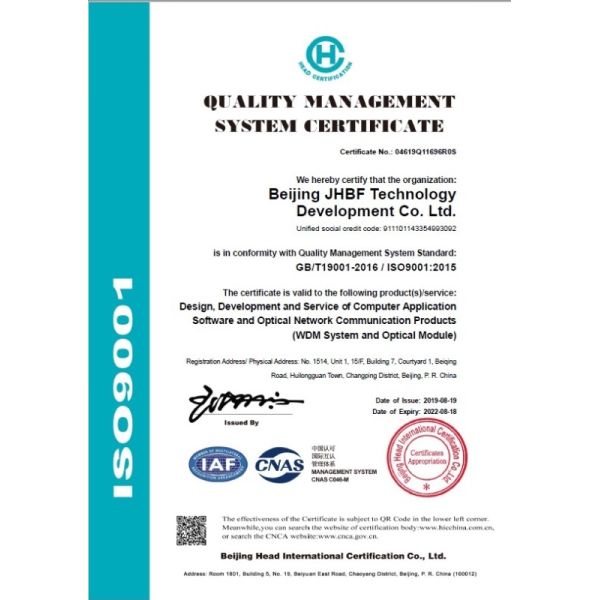

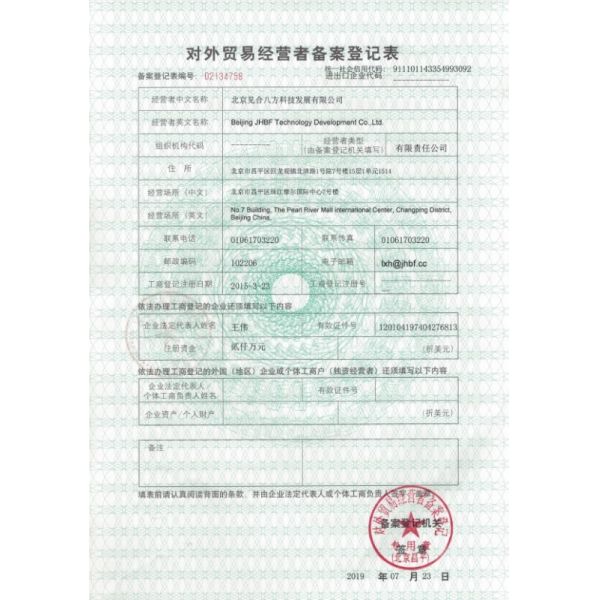

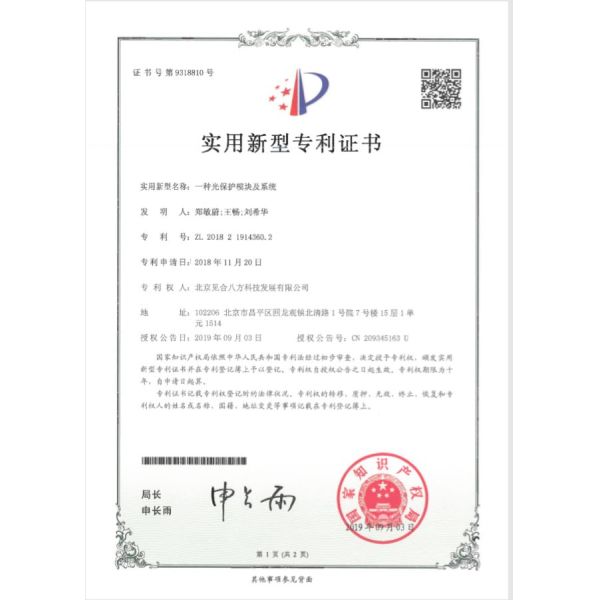

Certifications

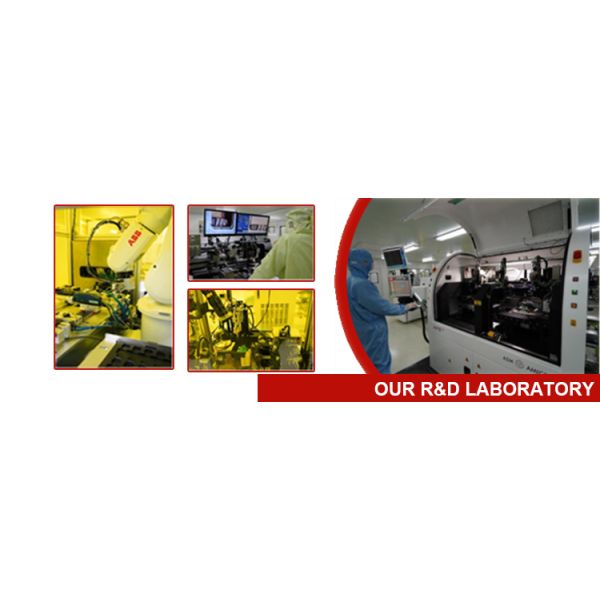

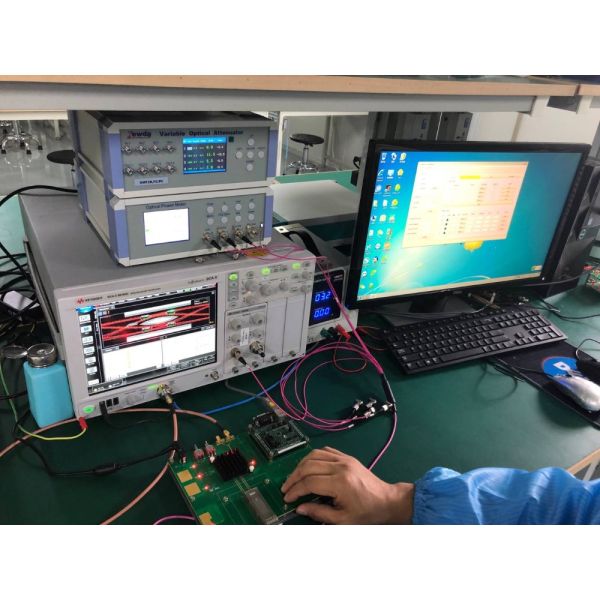

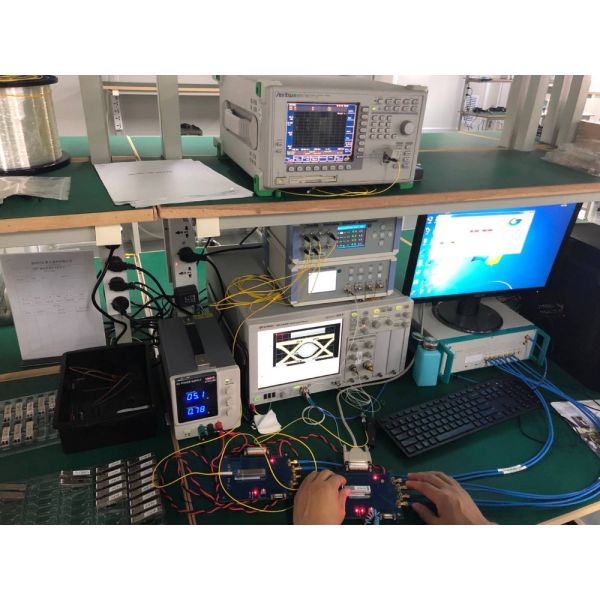

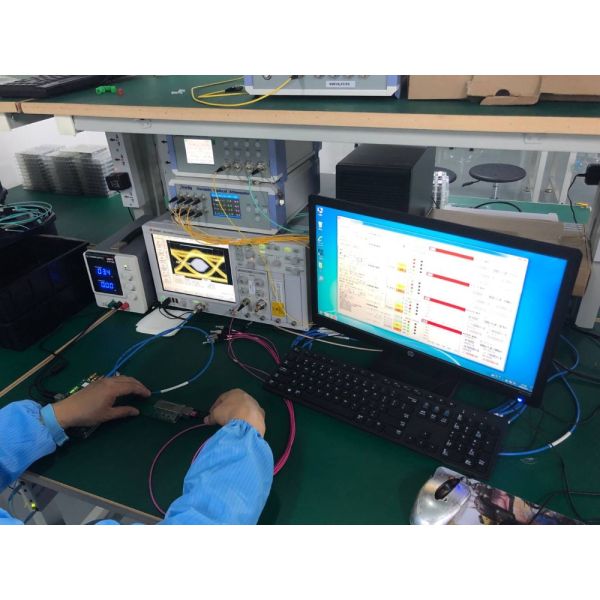

Company Profile
